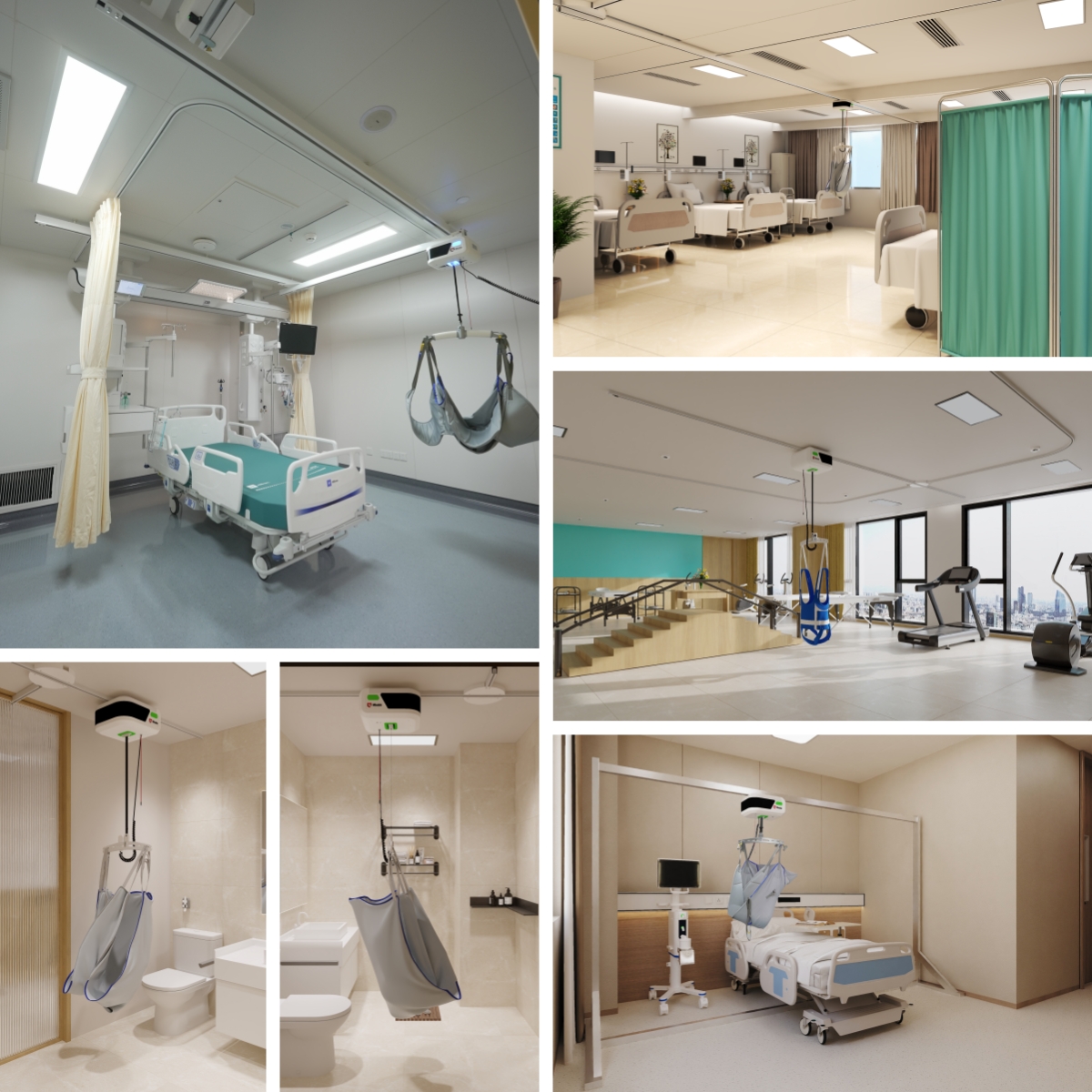

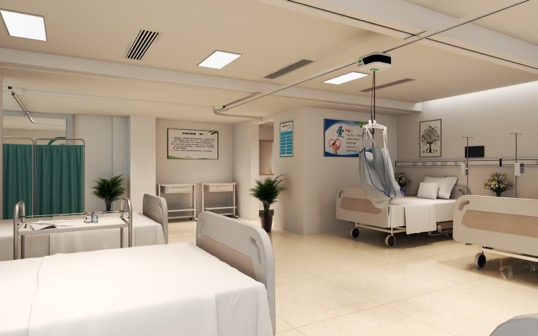

The smart lifting/ceiling mobile hoist system is used for moving patients in wards and public areas and also for the partial weight bearing gait training in rehabilitation department. Our mobile hoist system is an excellent short-distance carrier, which improves the nursing quality and operation, reduces the work intensity of the nurses, improves the working efficiency and avoids secondary injury to the patients and medical staff during the movement. A variety of laying schemes and door passing systems provide professional and safe moving schemes in different application scenarios.
Our Ceiling Hoists/Patient Lift System, is a revolutionary solution designed to enhance the quality of life for individuals with disabilities. The system deliver a safe, efficient approach to patient assistance, making them an indispensable addition to hospitals , various healthcare facilities and home . Equipped with ceiling track technology, our comprehensive product range ensures optimal care and improved mobility for those in need. Explore the advantages of our ceiling lift systems in clinical settings and discover how they can make a profound difference in the lives of both patients and caregivers.

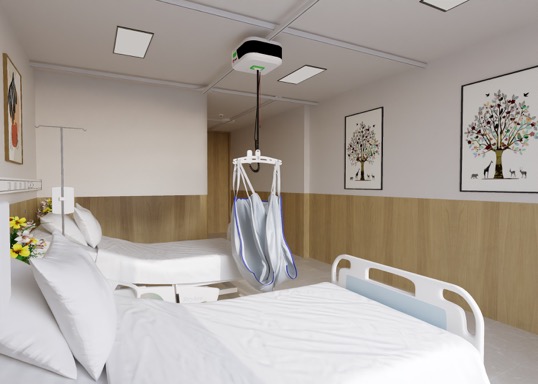

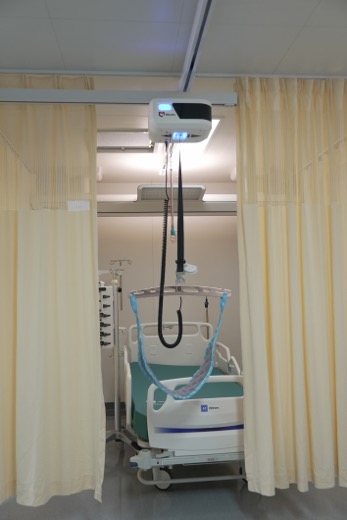

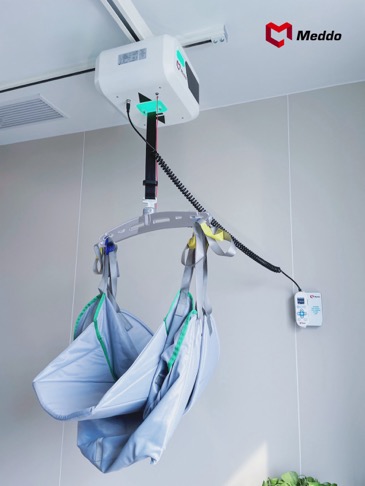

Meddo's Ceiling Hoist System(Ceiling Lift System), integrates innovative, state-of-the-art technology to support safe, effective care and exercise for patients.. This smart mobile ceiling hoist system is primarily used for patient transfer in wards and public areas, as well as for partial training in rehabilitation departments. It serves as an ideal solution for short-distance patient movement, effectively improving nursing quality and operational efficiency, reducing the work intensity of nursing staff, and preventing secondary injuries to both patients and caregivers during transfers.

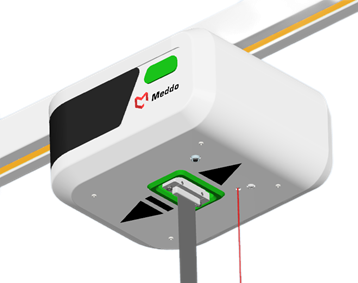

The Ceiling Hoist System(Ceiling Lift System) is used for moving patients in wards and public areas and also for the partial training in rehabilitation department . The CL100 Series offers multiple extended models to cater to diverse patient requirements: CL100-1 comes with a basic lifting function; CL100-2 supports electric lifting and horizontal movement function ; CL100-3, the advanced version, integrates all the above features and adds an Automatic Following Mode, fully meeting the rehabilitation needs of most patients.
A variety of layout schemes and door-passing systems are available to provide professional, safe movement solutions tailored to different application scenarios.
| Functions | MODEL: | ||
| CL100-1 | CL100-2 | CL100-3 | |
|
|
| |
| Size | 350*310*172 mm | 350*310*172 mm | 350*310*172 mm |
| Main unit weight | 11.1kg | 13.6kg | 13.7kg |
| Lifting Capacity(kg) | 200 kg | 200 kg | 200 kg |
| Hand control protection class | IPx4 | IPx4 | IPx4 |
| Hand control | LED LCD display hand-held controller | LED LCD display hand-held controller | LED LCD display hand-held controller |
| Electric Lifting Speed（Full load） | 23-50mm/s | 23-50mm/s | 23-50mm/s |
| Electric horizontal movement speed | / | 20cm/s | 20cm/s |
| Special Function | / | / | Auto-tracking Function/CPM Function |
| Battery | 25.6V 3.6Ah | 25.6V 3.6Ah | 25.6V 3.6Ah |
| Charging time | ≤4 hours | ≤4 hours | ≤4 hours |
| Lift sling Length mm | 2150mm | 2150mm | 2150mm |
| Integrated Weighing Module | ±0.5 kg | ±0.5 kg | ±0.5 kg |
| Emergency stopping device (pull cord) accessible from the ground | Yes | Yes | Yes |
| Safety Module | Safety Module including an emergency pull cord, overload alarm, fault alarm, lifting pause on sling angle deviation and a power-off brake | Safety Module including an emergency pull cord, overload alarm, fault alarm, lifting pause on sling angle deviation and a power-off brake | Safety Module including an emergency pull cord, overload alarm, fault alarm, lifting pause on sling angle deviation and a power-off brake |
Nursing Support
Safe Transfers, Total Peace of Mind:

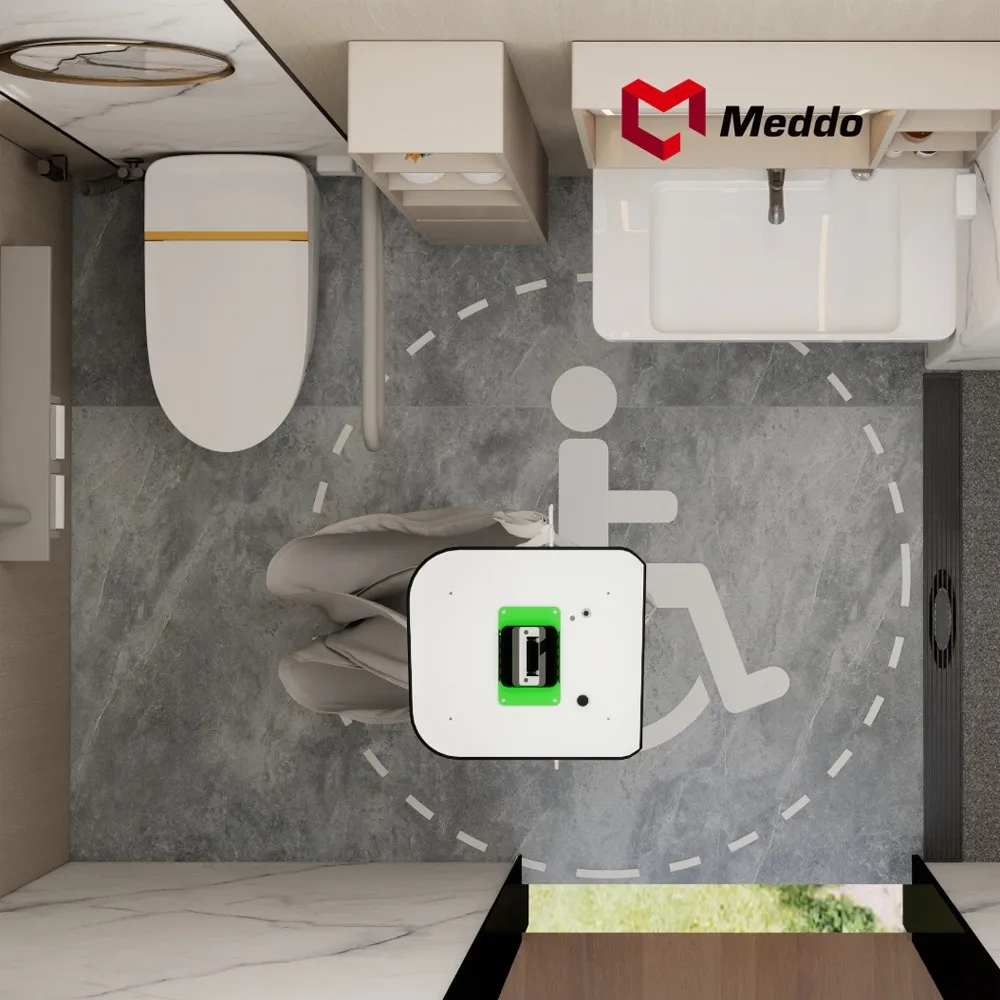

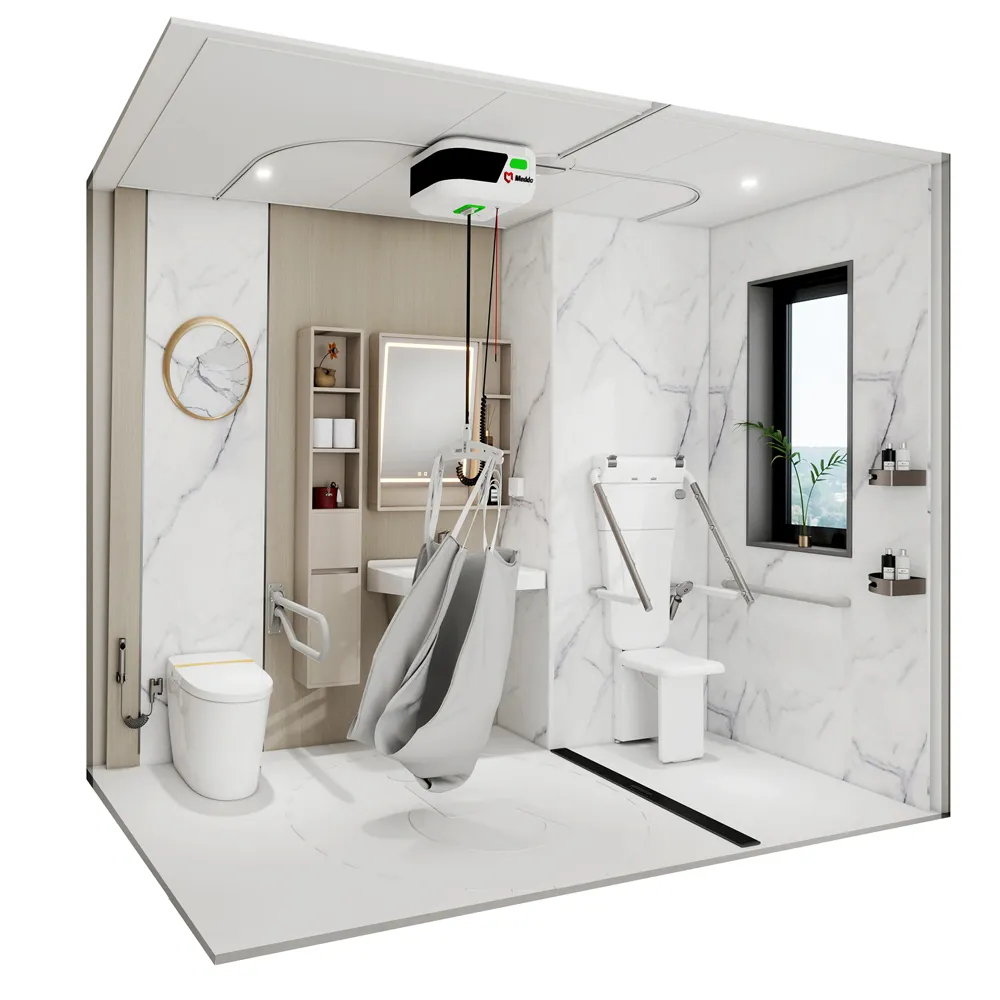

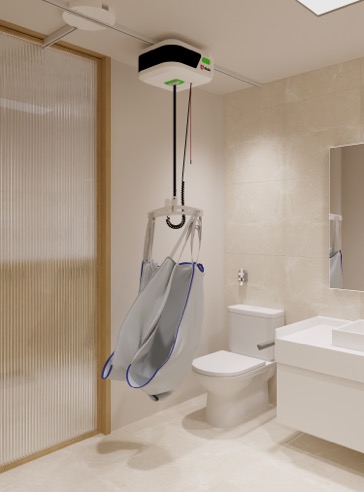

Whether moving from the bedroom to the bathroom, the living room to the balcony, or assisting with toileting and bathing, the CL100 Series enables smooth and secure transfers across all areas. It eliminates the risk of secondary injuries such as falls or bumps associated with manual lifting, ensuring every movement is safe.
Professional Care, Simplified:
A single caregiver can effortlessly operate the system to assist with daily care tasks such as turning, skin care, and bed sheet changes. This significantly reduces the physical burden on caregivers and effectively prevents work-related injuries like lumbar muscle strain caused by prolonged manual exertion.
Enhanced Quality of Life, Preserved Dignity
More than just a care tool, it enhances the user's comfort, sense of security, and well-being, allowing every elderly person or patient to enjoy life with dignity—in a loving home or a professional care institution.

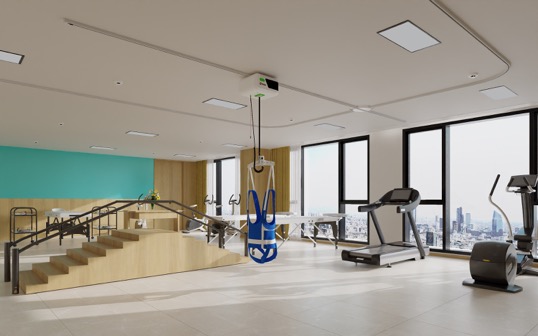

Rehabilitation Support
Optional main units for personalized rehabilitation needs:
The CL100 Series offers multiple extended models to cater to diverse patient requirements: CL100-1 comes with a basic lifting base; CL100-2 supports electric lifting and horizontal movement; CL100-3, the advanced version, integrates all the above features and adds an automatic tracking mode, fully meeting the rehabilitation needs of most patients.
Specialized slings for rehabilitation scenarios:
The two-point hanger can be paired with our customized slings，including walking training patient slings and sitting patient slings，Supine Sling ，Limb Sling for limb lifting and positioning，which can give the support to finish the daily rehabilitaions, and also can protect nurses' lumbar vertebrae and prevent secondary injuries during rehabilitation training. Our dedicated walking training patient sling further enhances patient comfort during sessions.
Auto-Following Function (CL100-3 exclusive):

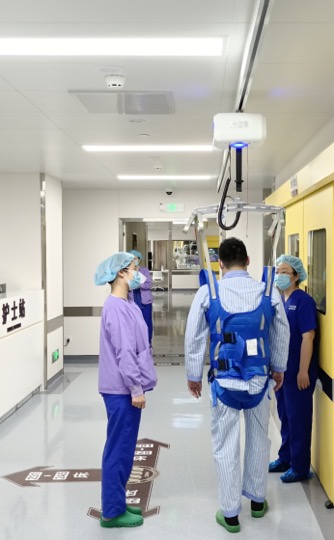

CL100-3 features an Auto-Following function that intelligently follows the patient's progress, minimizing external force impact on the patient and focusing on active walking training. Particularly for patients with poor balance and stability in the initial stage of rehabilitation, it provides "close-fitting" rehabilitation services and support.
Weighing Module :
Automatically measures the patient’s weight during nursing procedures, enabling healthcare institutions and staff to adjust medication and diet plans based on real-time weight changes for more targeted care.
Target Point Lock:
Equipped with a fixed parking function, featuring high-friction materials and a large-area mechanical brake on the track. It can withstand sufficient lateral tension, fully bearing the instantaneous force generated by unexpected forward/backward tilting of the patient. This function firmly stabilizes the patient’s torso, provides adequate support, and effectively prevents falls and injuries.
CMP Function-Early Training support:
CL100 Series can assist patients in early rehabilitation training, CL100-3 has the CMP Function, use our special Limb Sling for limb lifting and positioning , providing passive joint movement, effectively preventing joint stiffness and muscle atrophy, and promoting early functional recovery.
Respiratory rehabilitation support:
A specially designed sitting sling helps ICU patients on mechanical ventilation perform various postural breathing exercises or postural drainage. This prevents the occurrence of pneumoconiosis and pulmonary atelectasis, and improves the success rate of patient weaning from ventilation.
Circulation management:
The mobile lifting system ( CL100 Series )assists critically ill patients in achieving bedside standing, independent standing, and walking. Careful and safe standing protection enables patients to complete daily self-care tasks, promoting blood circulation and overall recovery.
Diversified slings for versatile scenario adaptation:
Our slings are diversified and comfortable. It facilitates patient activities such as toileting, showering, wheelchair transfers, supine movement, and prone position ventilation therapy—significantly improving nursing efficiency, protecting nurses' lumbar vertebrae, and avoiding potential secondary injuries to patients during movement.
| Ambulating Sling/Walking slign | Supine Sling | Sitting Sling | Limb Sling for CPM | |||||||||
|  |  |  | |||||||||
| These slings are available in various sizes to suit different users. Each sling is lined with soft material to ensure maximum comfort during use. | ||||||||||||
Versatile accessories for wide-ranging application:
Customizable door-passing systems and layout schemes ensure compatibility with various on-site facilities (fire protection systems, air conditioners, lighting, and doors), meeting the movement and rehabilitation needs of institutions, hospitals, and care facilities across different occasions.
Cost-Effective
The system’s affordable price point makes it an accessible option for budget-conscious users.
Detachable, washable slings and maintenance-free tracks reduce long-term usage hassle, greatly lowering the subsequent use burden for both families and institutions.
This device is contraindicated in patients with unhealed lower limb fractures, joint injuries in the unstable phase, severe bleeding tendency, orthostatic hypotension, severe osteoporosis, severe cognitive impairment and other such conditions.
