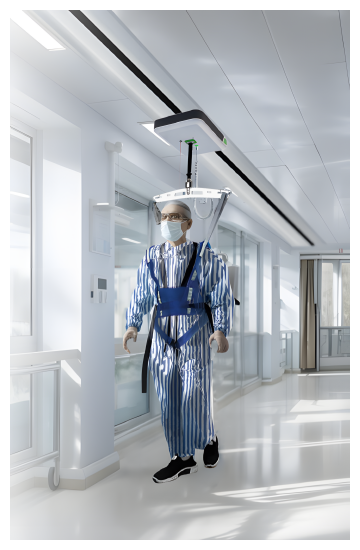

Meddo's Dynamic Weightless Ceiling Hoist System is an innovative and state-of-the-art technology designed to support safe and effective exercise for patients with various medical conditions.

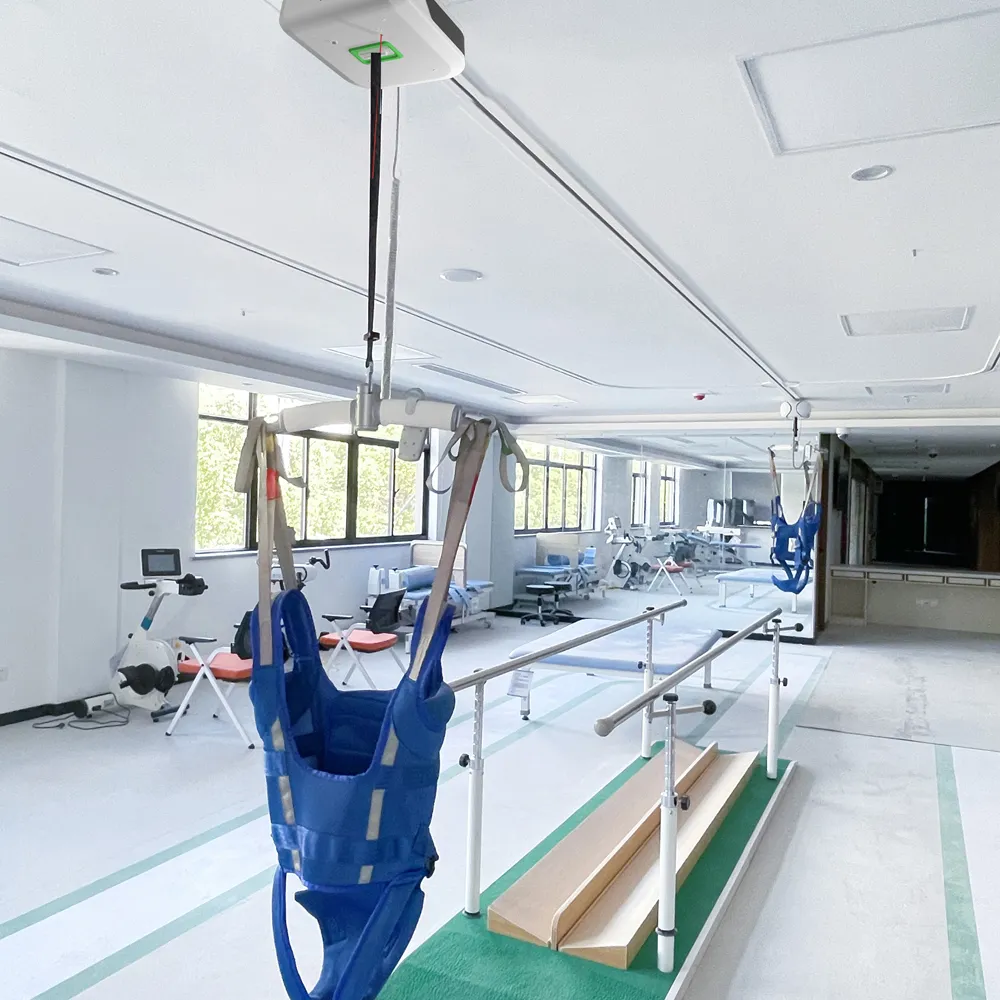

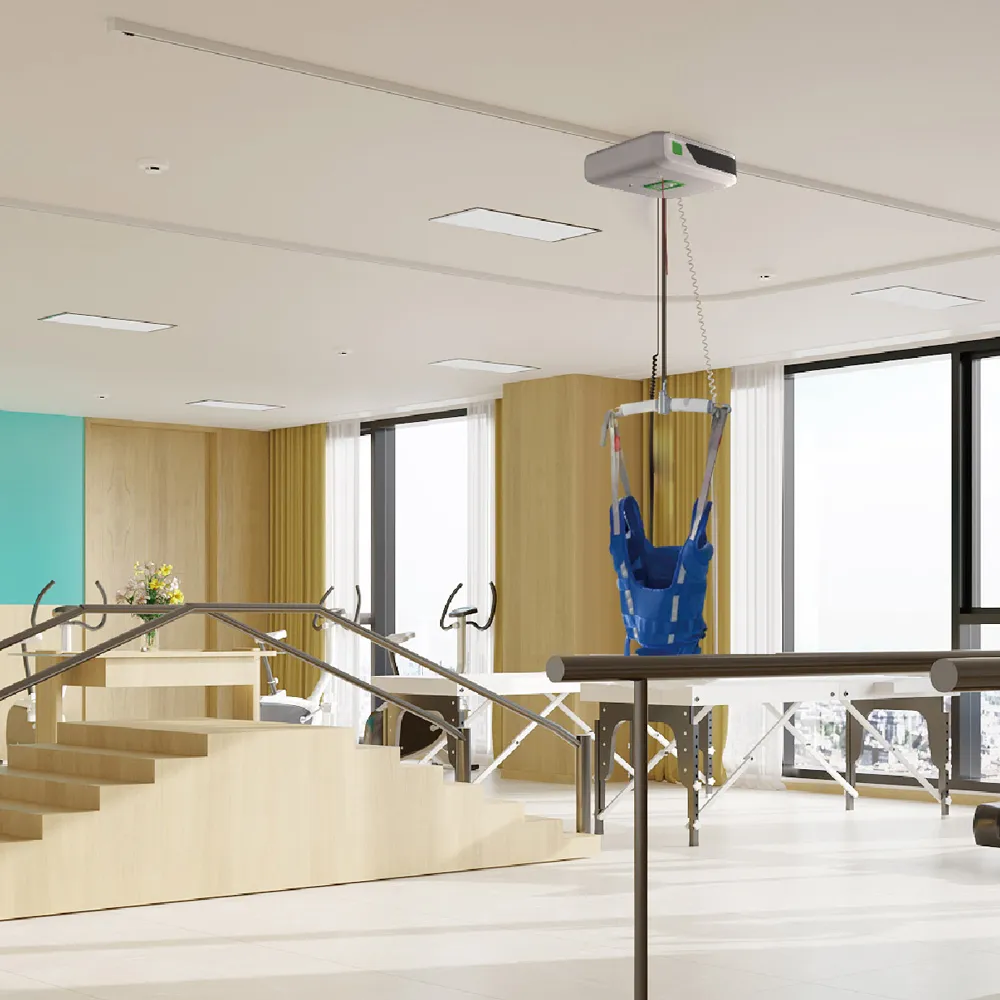

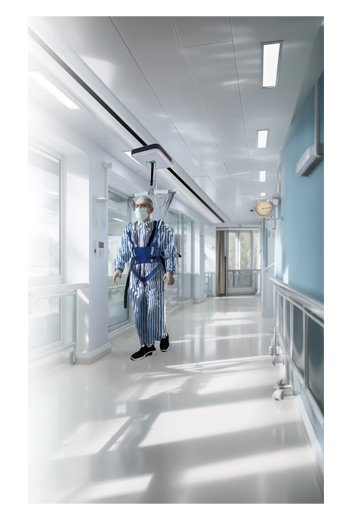

The system offers patients safe and sufficient support and protection in ward corridors, rehabilitation halls and other such areas, enabling the delivery of balance function training and body weight-supported gait training. It is indicated for patients with lower limb dysfunction caused by stroke, fractures and traumatic injuries. The overhead track system is adopted to carry out gait training, sitting and standing training as well as balance function training, which improves patients’ motor ability and safeguards their safety during training. This equipment can be combined with a variety of rehabilitation devices to meet the training needs of patients at all recovery stages, and is suitable for rehabilitation halls in medical institutions.
Central Control Console
It features intelligent control and real-time monitoring of all training parameters, and enables real-time adjustment of all dynamic parameters of the main unit – including translational acceleration and speed. It also allows for the adjustment of the adaptive range of sling lifting and lowering, facilitating safer and more comfortable training sessions.
Tablet Controller
The tablet controller can synchronize with the central control console to perform all operations and features wireless connectivity. Medical staff can carry the controller to accompany patients during all training sessions, and make timely adjustments based on the real-time training status, thus providing patients with more professional and comprehensive services.
| Functions | MODEL: CL100-C |
| FUNCTION | Electric 4-Way Movement Function Dynamic Weight Reduction Function Adaptive Function Fall Prevention Function Full-Track Charging System Weighing Module Patient training database Sitting and Standing Training Mode Training Mode/Gait Training Mode Walking training Mode |
| Size | 710*530*175mm |
| Main unit weight | 50kg |
| Lifting Capacity(kg) | 200 kg |
| Hand control protection class | IPx4 |
| Hand control | Central Control Console +（Option）Tablet Controller |
| Electric Lifting Speed | 0-50cm/s（Adjustable） |
| Electric horizontal movement speed | 0-50cm/s（Adjustable） |
| Special Function | Dynamic Weight Reduction Function：0-100KG (Adjustable） |
| Integrated Weighing Module | an accuracy of ±0.5 kg |
| Charging time | ≤6 hours |
| Lift sling Length mm | 2150mm (Customizable sling length) |
| Integrated Weighing Module | an accuracy of ±0.5 kg |
| Emergency stopping device (pull cord) accessible from the ground | Yes |
| Safety Module | Safety Module including an emergency pull cord, overload alarm, fault alarm, lifting pause on sling angle deviation and a power-off brake |
Dynamic Weight Support
The device is equipped with high-precision built-in sensors for dynamic sensing. It can adjust the sling height in real time based on the patient’s condition and deliver a nearly constant supporting force to the patient. This function is applicable for functional movement training in early-stage patients, including gait training, sitting and standing training, core balance training and other such exercises.
Automatic Moving Speed Resistance Suitable for All Rehab Levels
The ceiling lift system offers Automatic Moving Speed Resistance, which can be adjusted to match the user's walking rehabilitation level, enabling progressive training. The Dynamic Weightless Ceiling Hoist System is suitable for patients at all rehabilitation stages,also can be used to train the entire body, including core and lower body muscles.
Electric 4-Way Movement Function
The device features electrically controlled vertical lifting and horizontal translation, and is easy to operate. It meets the rehabilitation needs of most patients and is specially designed for individuals in need of rehabilitation.
Adaptive Function
The system is equipped with an adaptive adjustment function, which can make automatic adjustments in accordance with the patient’s movement direction, movement speed, center of gravity height, weight reduction parameters, site terrain and other relevant factors during exercise.
Auto-Following Function
CL100-C features an Auto-Tracking function that intelligently follows the patient's progress, minimizing external force impact on the patient and focusing on active walking training. Particularly for patients with poor balance and stability in the initial stage of rehabilitation, it provides "close-fitting" rehabilitation services.
Fall Prevention Function
Via built-in sensors, it monitors the patient’s center of gravity deviation in real time. The lifting belt operates within a safe and effective movement range, providing real-time protection for patients.
Target Point Lock
CL100-C includes a Target Point Lock function, featuring a fixed parking mechanism made of high-friction materials and a large-area mechanical brake on the track. It can withstand sufficient lateral tension and fully accommodate the instantaneous tension caused by unexpected forward or backward tilting of the patient. This function firmly stabilizes the patient's torso, provides adequate support, and prevents falls and injuries.
Early Mobilization
The ceiling lift track system helps patients perform passive joint movements, preventing joint stiffness and muscle atrophy.
Circulation Management
When paired with a walking vest, the mobile hoist system assists critically ill patients in achieving bedside standing, independent standing, and walking. Its careful, safe standing protection helps patients complete daily self-care activities.
Diversified slings for versatile scenario adaptation:
The two-point hanger can be used with our customized patient slings, including ambulation training slings and sitting slings. It provides full support for patients to complete walking exercises and daily training, significantly improves nursing efficiency, protects nurses from lumbar strain, and helps avoid potential secondary injuries to patients during transfer.
Customizable Fittings for Wide-Range Applications

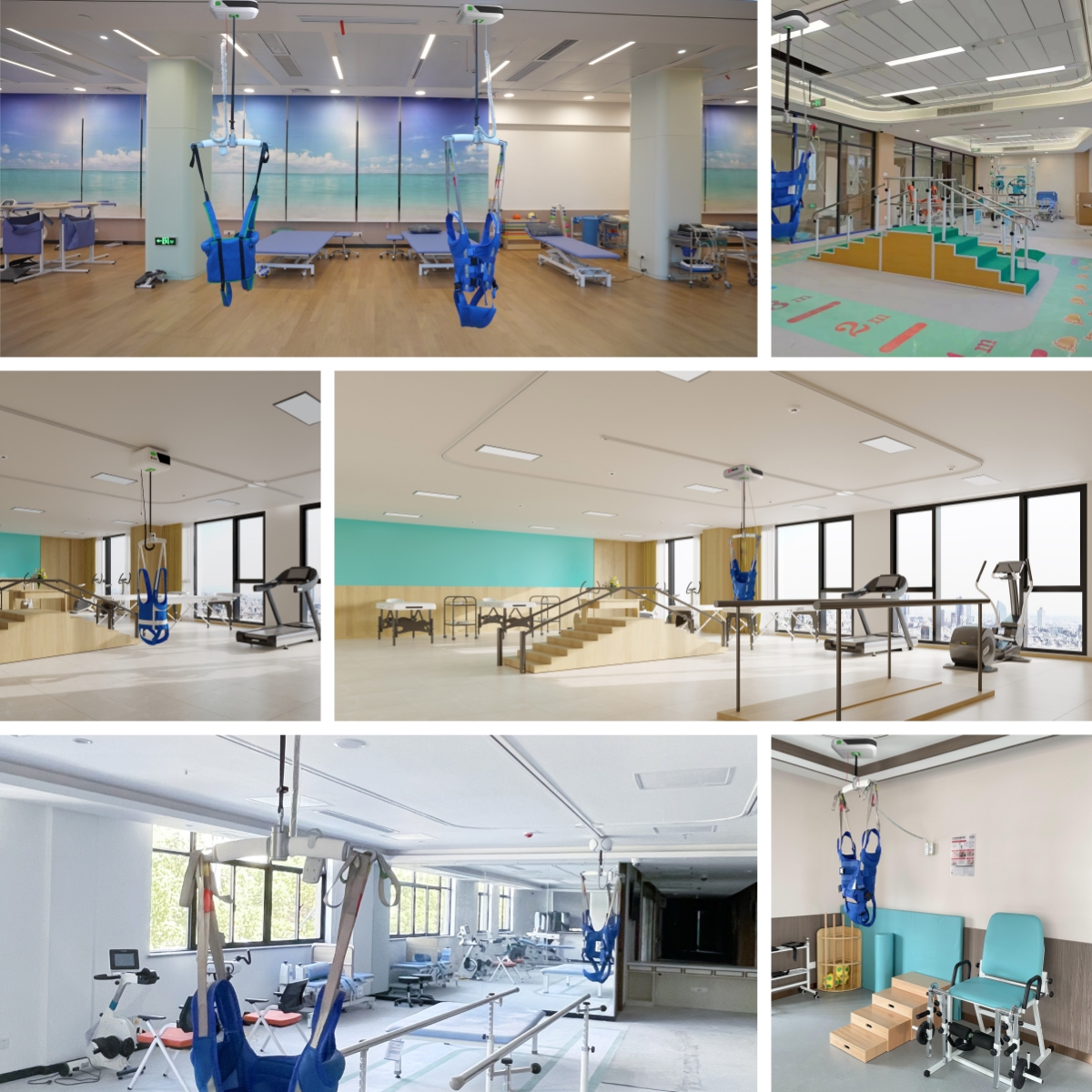

Door-crossing systems and layout schemes can be customized to ensure compatibility with various facilities (fire-fighting systems, air conditioners, lights, and doors), meeting the movement and rehabilitation needs of institutions, hospitals, homes, and nursing homes in different scenarios.
Low-Impact Design
The system’s low-impact design reduces joint stress, making it an ideal exercise option for individuals with joint or mobility issues.
Customizable Training Programs
The ceiling hoist system offers customizable workouts via different attachments and resistance levels, allowing users to tailor their training to their specific needs and rehab goals.
Cost-Effective
The system’s affordable price point makes it an accessible option for budget-conscious users.
This device is contraindicated in patients with unhealed lower limb fractures, joint injuries in the unstable phase, severe bleeding tendency, orthostatic hypotension, severe osteoporosis, severe cognitive impairment and other such conditions.
