MD-T-200 is specifically engineered for modern homes, setting a new standard for home care.
As the global population ages, aging in place has become a preferred choice for many families. The challenge lies in ensuring that elderly or mobility-impaired loved ones receive professional, safe, and dignified care within the comfort of their own homes.High-quality home care equipment is pivotal to achieving this goal.
According to the UNFPA, the global population aged 65 and over will reach 250 million by 2050, accounting for 17% of the total population. In China, the prevalence of chronic diseases is also rising. Consequently, the demand for humanized rehabilitation and care has become increasingly prominent, driving the integration of "prevention, treatment, rehabilitation, and care" as the core model for future home care.
As the global population ages, aging in place has become a preferred choice for many families. Meanwhile, hospitals and care facilities are seeking efficient, safe care solutions to optimize service quality. The challenge lies in ensuring that elderly, mobility-impaired, or post-operative individuals receive professional, safe, and dignified care—whether in the comfort of their own homes or in clinical settings. High-quality care equipment is pivotal to achieving this goal.
According to the United Nations Population Fund (UNFPA), the global population aged 65 and over is projected to exceed 1.5 billion by 2050, accounting for approximately 16% of the total population. In China, the prevalence of chronic diseases is also rising. Consequently, the demand for humanized rehabilitation and care has become increasingly prominent, driving the integration of "prevention, treatment, rehabilitation, and care" as the core model for both future home care and institutional care.

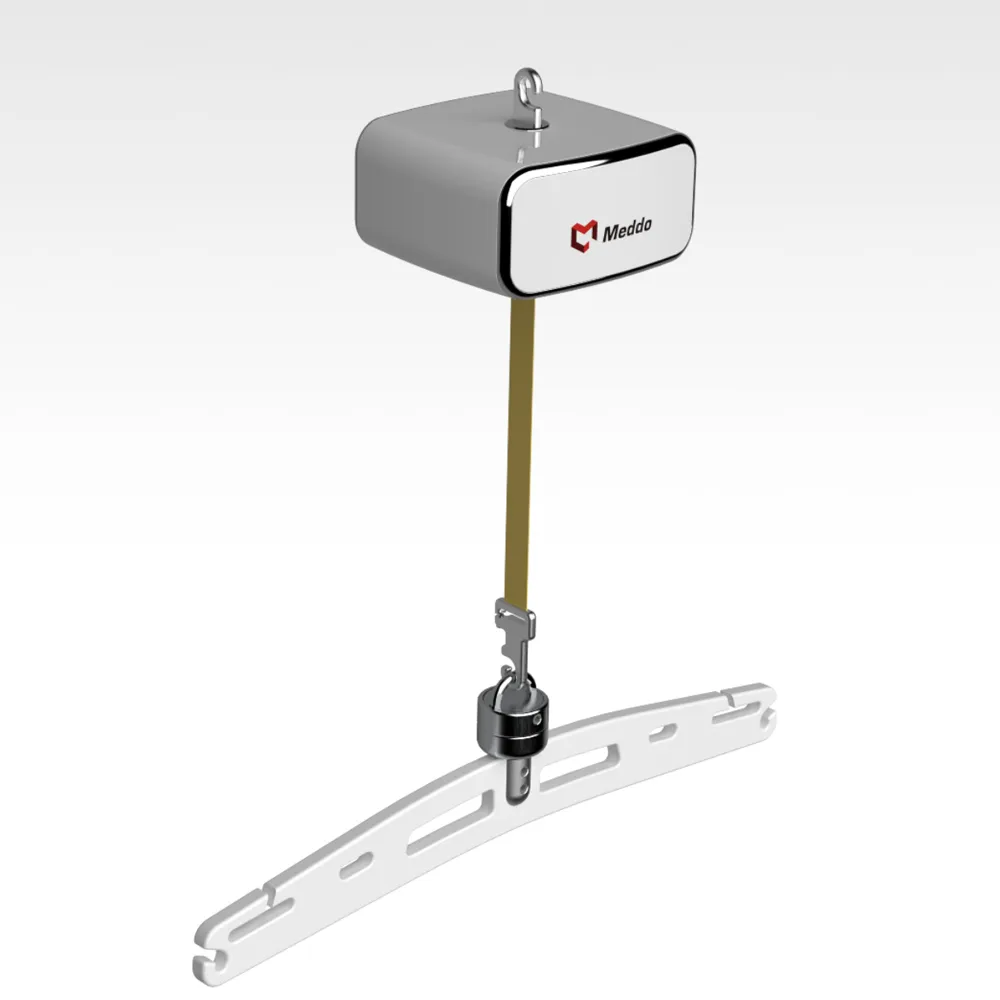

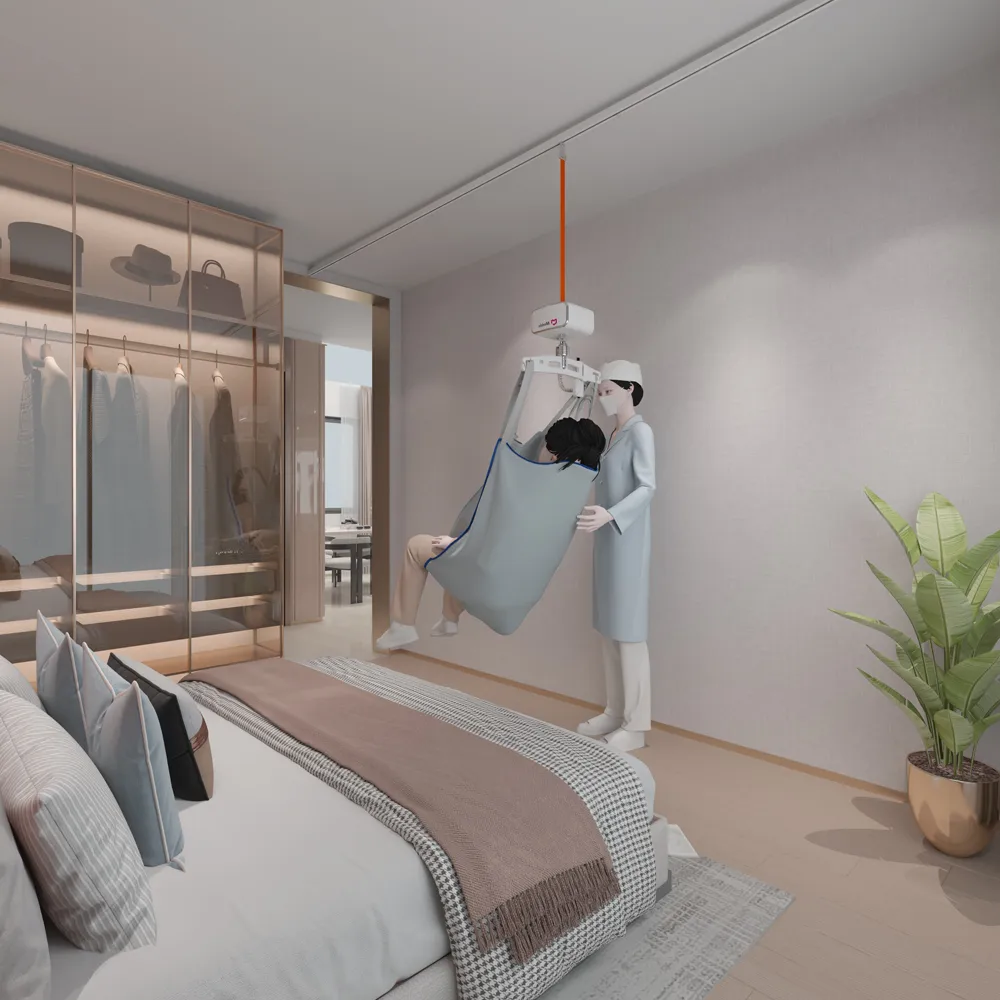

Intelligent Ceiling Lift System MD-T-200 is specifically engineered for homes, hospitals, and professional care facilities, setting a new standard for residential and institutional care. Designed for daily sitting and lying transfers, it delivers practical support for both in-home care and clinical care scenarios.Our system is centered around a lightweight and multifunctional overhead track, utilizing a modular design that allows for quick installation in just tens of seconds, eliminating the need for complex engineering modifications. The track system can be flexibly arranged according to space requirements, ensuring efficient coverage without dead zones within the room. Whether it's from the hospital bed to the bathroom, from the wheelchair to the sofa, or from indoors to the hallway, it provides smooth and continuous transfer support, greatly optimizing the nursing workflow and enhancing care efficiency.
• The maximum lifting weight is 200kg
• One lift: Fixed or portable options, utilizing the same modular design
• Can be manually controlled
• Can be controlled by wireless remote control
• Charging through a handheld controller
Functions | MODEL: MD-T-200 |
Size | 198*188*98mm |
Main unit weight | 3.8kg |
Max Safe Working Load(kg) | 200 kg |
Lifting Capacity(kg) | 200 kg |
Hand control protection class | IPx4 |
Hand control | Hand-held controller +Bluetooth remote control（OPTION) |
Electric Lifting Speed（Full load） | Load Capacity 200 kg: Lift 15.3 mm/s, Lowering 24.3 mm/s；Load Capacity 100 kg: Lift & Lowering 22.2 mm/s； No-Load: Lift 24.2 mm/s, Lowering 19.1 mm/s |
Battery | 25.6V 1.8Ah |
Charging time | ≤4 hours |
Lift sling Length mm | 2150mm (Customizable sling length) |
Emergency stopping device (pull cord) accessible from the ground | Yes |
Safety Module | Emergency Descent, Fault Alarm and Power-off Brake to ensure operational safety |
Lighter and smaller
At only 3.8 kg, the MD-T-200 is extremely lightweight and compact. It focuses on sitting and lying transfer care, making it ideal for homes, hospital wards, and nursing home scenarios.
Unique Innovation
One machine, dual-purpose, switching between fixed and portable at will
MD-T-200 model truly achieves revolutionary functional breakthroughs: the same equipment unit can be used as a fixed overhead track and can also be easily converted into a portable mobile system. Simply flipping the main body of the equipment, one can freely switch between "fixed installation" and "portable carry-along" modes. This design breaks the scene constraints, freeing care from spatial limitations. Whether moving between multiple rooms at home or transporting between different care settings, it can provide continuous and stable professional support.
Humanized Design
Multi-angle adjustment, ensuring comfort throughout the journey

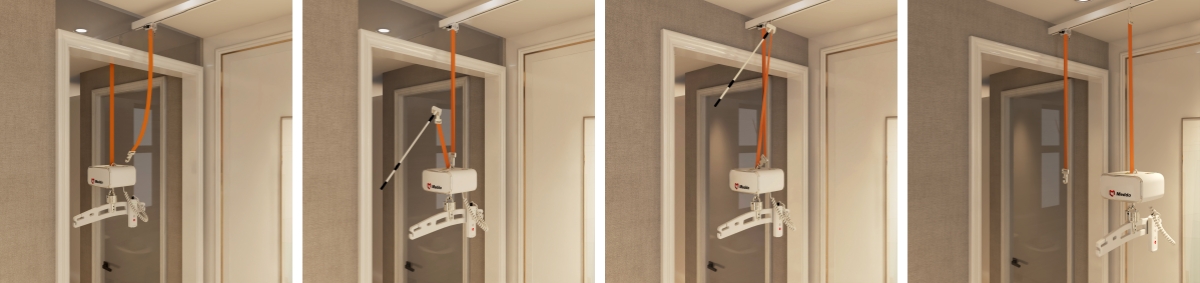

The main unit of this product can be installed in either upright hanging or reverse hanging mode based on user requirements. It features a dual-mode mounting design that allows the main unit to be hung on the track in either orientation, with the mode selected according to specific usage scenarios.

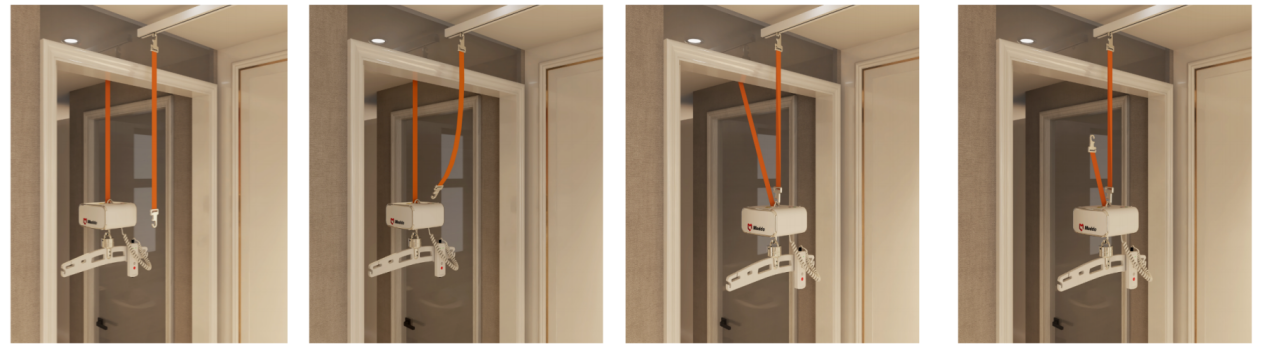

When door-crossing is required—whether in a family home or a multi-room hospital ward—the reverse hanging mode can be employed. The main unit can be transferred to the opposite side simply by replacing the sling. Therefore, neither households with existing interior decoration nor busy medical institutions seeking non-disruptive installation need to worry at all.
Safe Transfers, Total Peace of Mind
Extremely lightweight and compact. Focuses on sitting and lying transfer care

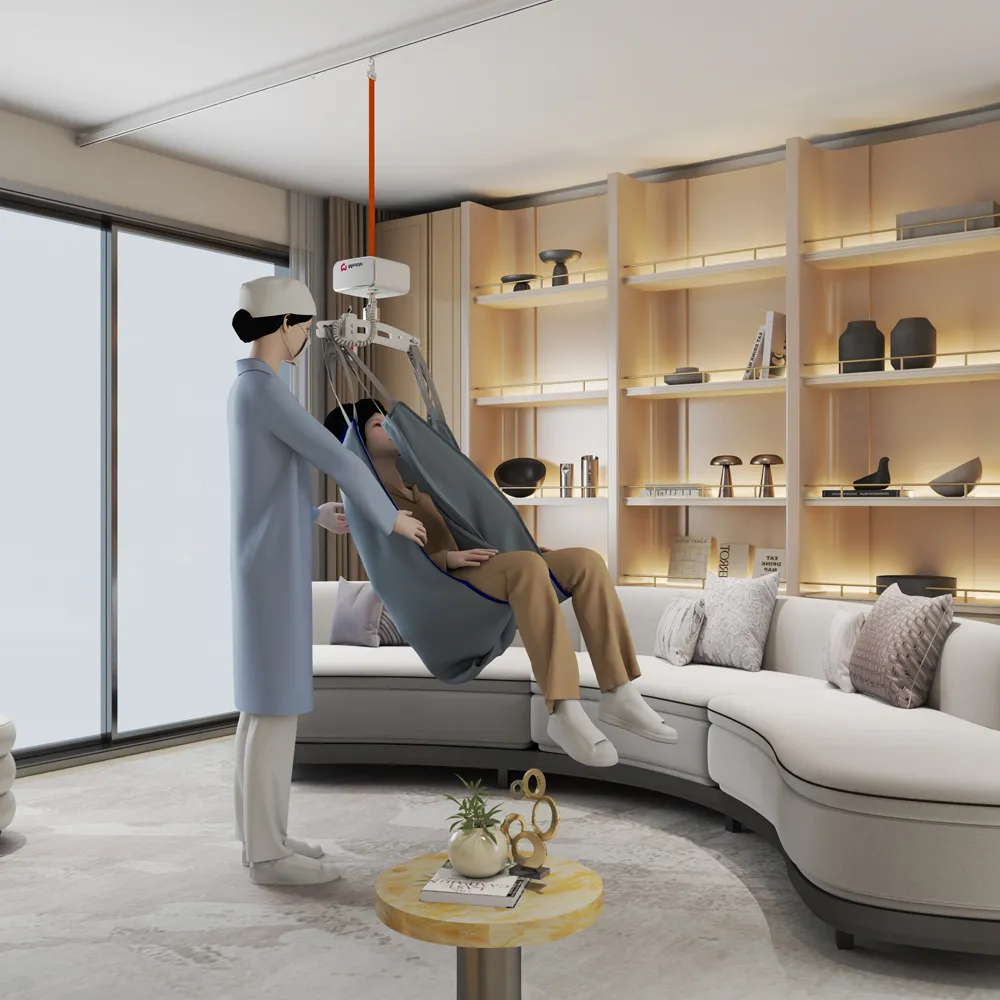

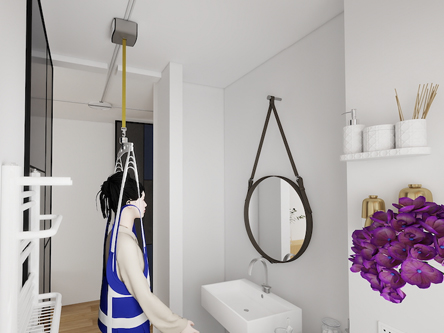

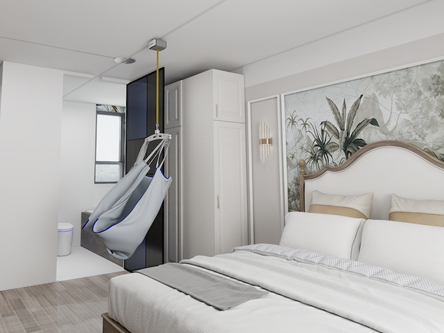

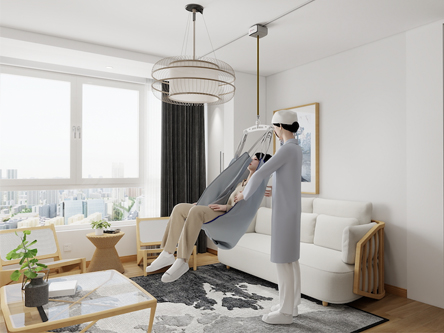

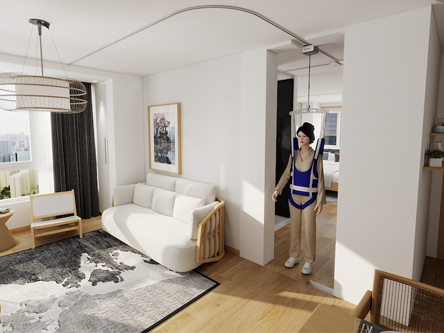

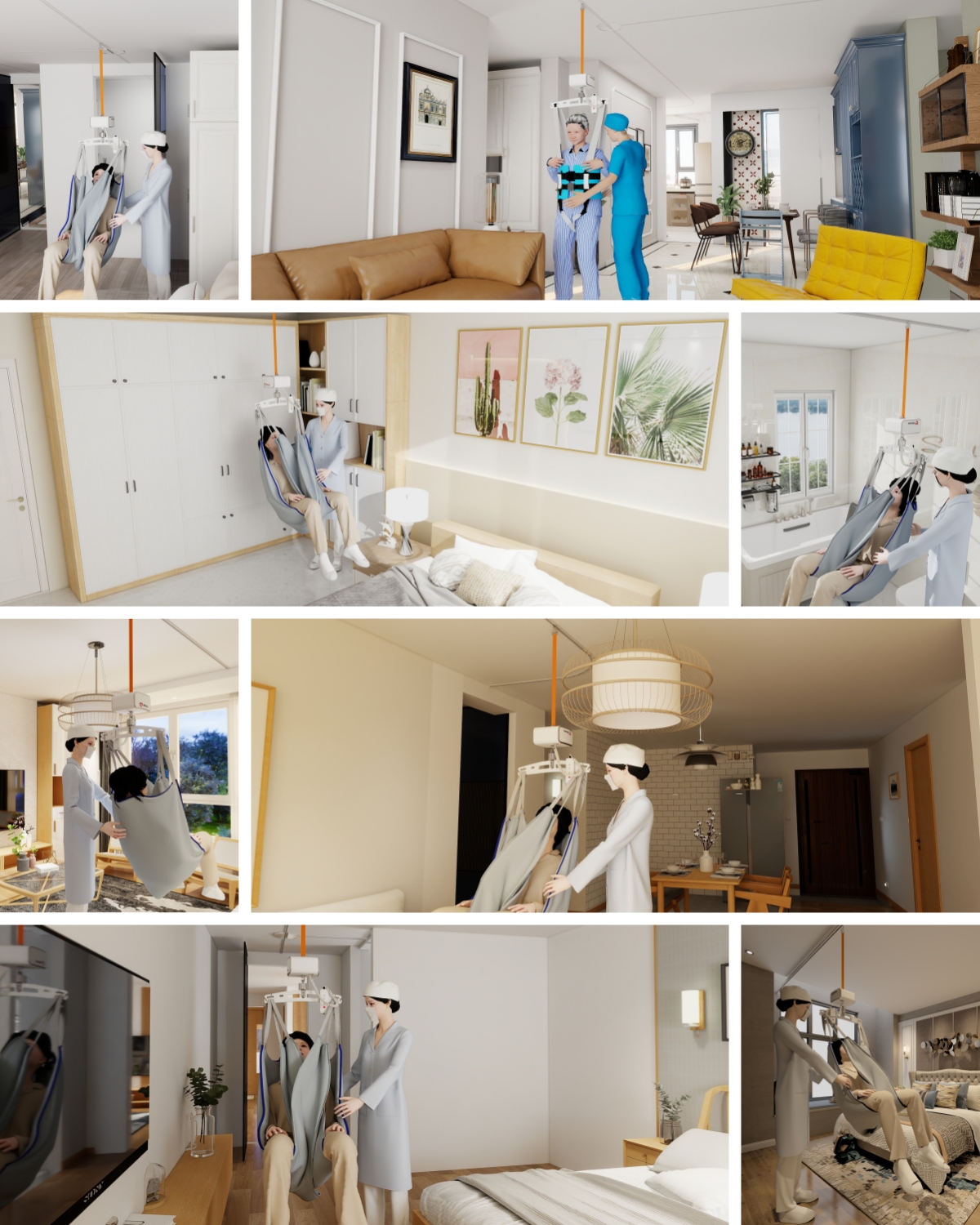

Whether moving from the bedroom to the bathroom, living room to the balcony at home, or from the ward to the rehabilitation room in institutions, or assisting with toileting and bathing, the MD-T-200 ensures smooth and secure sitting or lying transfers across all indoor areas. It eliminates the risk of secondary injuries such as falls or bumps associated with manual lifting, ensuring every movement is safe.
The product complies with national household and medical care equipment safety standards, providing more reliable protection than manual care. Compared with traditional transfer machines, it does not occupy ground space; compared with manual handling, it achieves zero risk of secondary injury—a critical advantage for high-volume care in institutions
Professional Care, Simplified
A single caregiver can effortlessly operate the system to assist with daily care tasks such as turning, skin care, and bed sheet changes. This significantly reduces the physical burden on caregivers, a key benefit for busy hospital staff and nursing home workers, and effectively prevents work-related injuries like lumbar muscle strain caused by prolonged manual exertion.
The system adopts one-key remote control operation, which is simple and easy to learn. Both family members and professional care staff can master it quickly.
Enhanced Quality of Life, Preserved Dignity
The design of the portable support rod fully considers ergonomics and psychological needs: it can automatically maintain the optimal support angle throughout the transfer process, ensuring comfortable sitting posture and even support for the user's body, effectively alleviating local pressure. At the same time, this design creates a natural eye level for caregivers, allowing them to easily maintain eye contact with the user during the operation, conveying comfort and encouragement, thereby enhancing mutual trust and making the care process more warm and respectful
Cost-Effective
The system’s affordable price point makes it an accessible option for budget-conscious users.
Detachable, washable slings and maintenance-free tracks reduce long-term usage hassle, greatly lowering the subsequent use burden for both families and institutions.
A Variety of Slings Support Diversified Scenarios

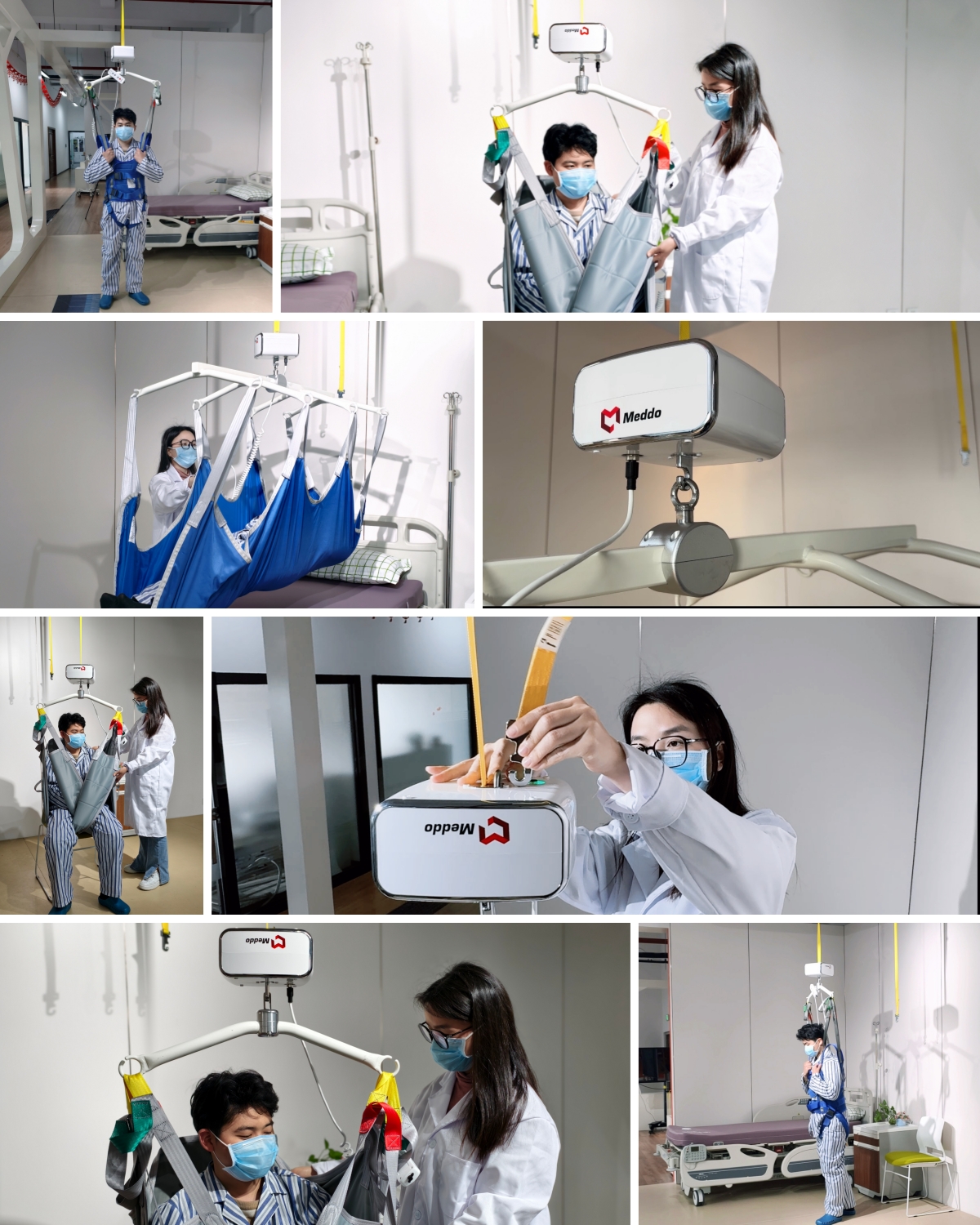

The two-point hanger can be used with slings（including walking training patient slings and sitting patient slings，Supine Sling ） for showering, toileting, and prone position ventilation. For example, assisting users with toileting, showering, wheelchair transfer, flat transfer, and prone position ventilation treatment improves the work efficiency of caregivers, protects their lumbar vertebrae, and avoids possible secondary injuries to patients during movement.
This system is suitable for the elderly, postoperative rehabilitation patients, people with lower limb mobility difficulties, and paralyzed individuals, covering multiple care needs in both households and institutions.
| Ambulating Sling/Walking slign | Supine Sling | Sitting Sling | |||||||||
|  |  | |||||||||
| These slings are available in various sizes to suit different users. Each sling is lined with soft material to ensure maximum comfort during use. | |||||||||||
Various Fittings Support a Wide Range of Applications
The door passing system and layout scheme can be customized to make it compatible with different facilities (fire protection systems, air conditioners, lights, and doors), meeting the needs of various occasions.

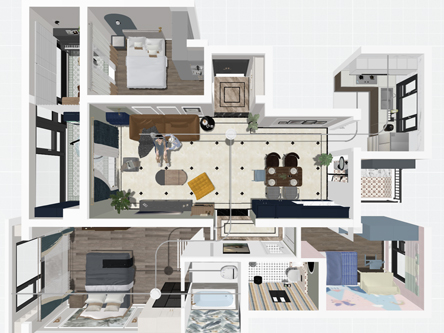

The system features wall-damage-free installation and flexible layout according to house types or institutional floor plans, with a maximum load-bearing capacity of 200 kg, making it suitable for most residential and clinical scenarios.
This device is contraindicated in patients with unhealed lower limb fractures, joint injuries in the unstable phase, severe bleeding tendency, orthostatic hypotension, severe osteoporosis, severe cognitive impairment and other such conditions.
